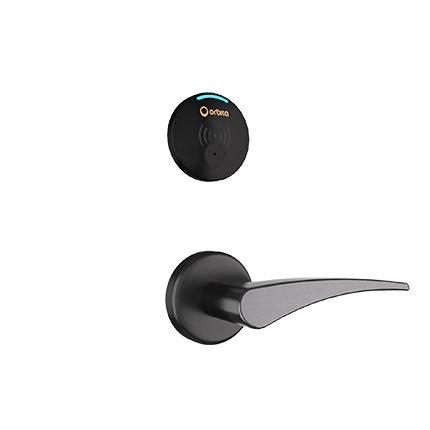

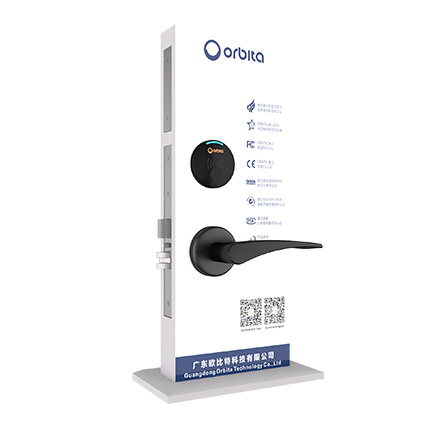

S3479A ORBITA hotel RFID lock

ORBITA S3079A Hotel Lock is made of grade Zinc Alloy & 304 stainless steel with a PVC card reader cover, with strong resistance to impact, corrosion and abrasion. The door lock PCB is waterproof with stable and reliable quality.

S3079A Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.

Security Features

• Solid deadbolt
• Renovated clutch inside lock panels
• Standard 1680 events,optional 3360events
• Optinal Bluetooth & Wireless Online solution
• Interface with Opera or FIAS format PMS
• Passed the 180-minute fire test

Technical Details

Door Thickness: 11/8″ (35mm) to 2（3/4 ）” (72mm) for standard product

• Operating Power: Quiescent current: <30 μA;
• dynamic current: < 200 mA
• Battery Life: last over one year
• Working Temperature: -20 ℃– 60℃;
• Relative Humidity: 20% – 90%

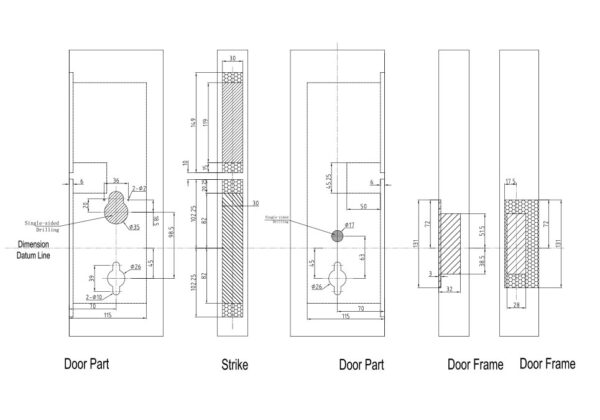

Drill holes (Unit:mm)

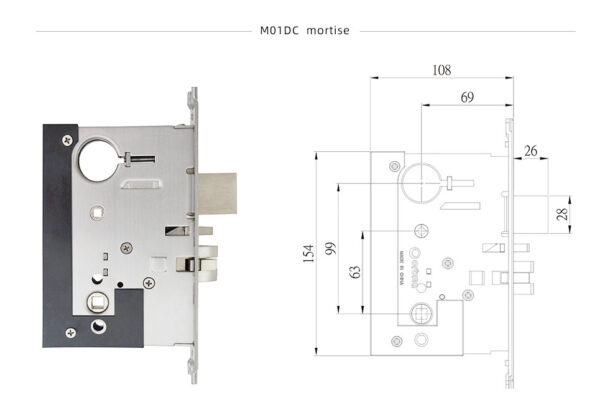

S3079A Hotel lock M01DC mortise Square plate (Right Open),Note:1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions.
2.Centerline of lock body is the dimension datum line.
3.Dimension unit: mm.
4. The carmine dot line part is lock body, the continuous thin line part is door part.
