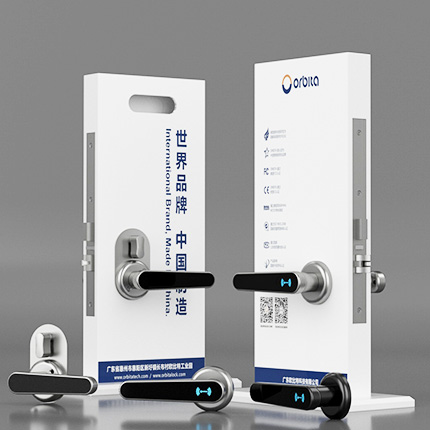

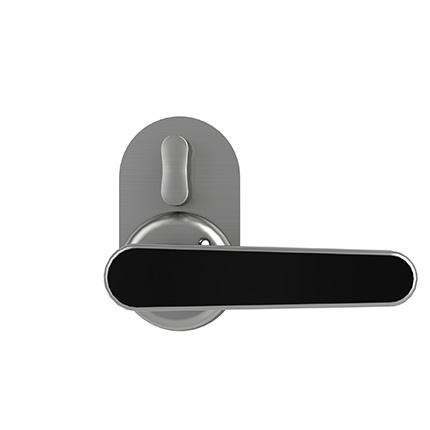

S3076 ORBITA hotel RFID lock
- Material:304 Stainless steel and zinc alloy
- Working Voltage：DC6V or 4 AA Alkaline batteries
- Low Voltage Alarm:4.8V
- Working Environment：-20℃~60℃
- Unlocking record：1680
- Door Thickness：45-65mm
- Keycard Option：Mifare 1 card
- Size：L62mm x W62mm x H12mm
S3076 Hotel Lock Summary
ORBITA S3076 Hotel Lock is made of grade zinc alloy with a PMMA card reader cover, with strong resistance to impact, corrosion and abrasion.
S3076 Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.
Product Details
Security Features
- Solid deadbolt
- Renovated clutch inside lock panels
- Standard 1680 events,optional 3360events
- Optinal Bluetooth & Wireless Online solution
- Interface with Opera or FIAS format PMS
- Passed the 180-minute fire test
Technical Details
Door Thickness: 1（50/64）” (45mm) to 2（9/16 ）” (65mm) for standard product
- Operating Power: Quiescent current: <30 μA;
- dynamic current: < 200 mA
- Battery Life: last over one year
- Working Temperature: -20 ℃– 60℃;
- Relative Humidity: 20% – 90%
Drill holes (Unit:mm)

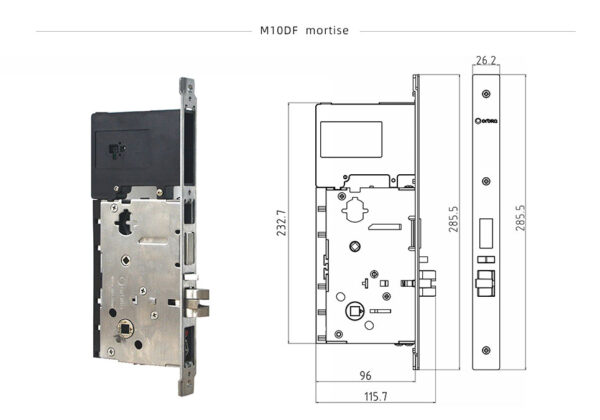

S3076 Hotel lock M10DF mortise square plate (Right Open),Note:1. The continuous thick line parts are to be drilled, pls refer to the picture dimensions.
2.Centerline of lock body is the dimension datum line.
3.Dimension unit: mm.
4. The carmine dot line part is lock body, the continuous thin line part is door part.
