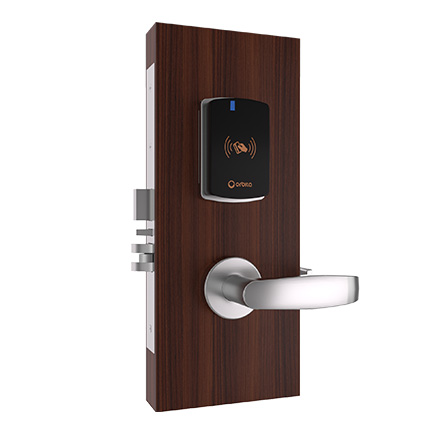

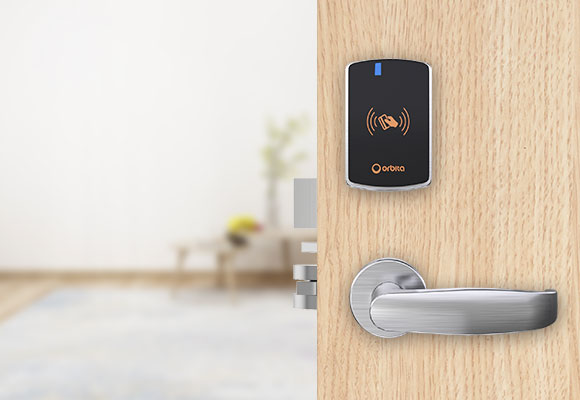

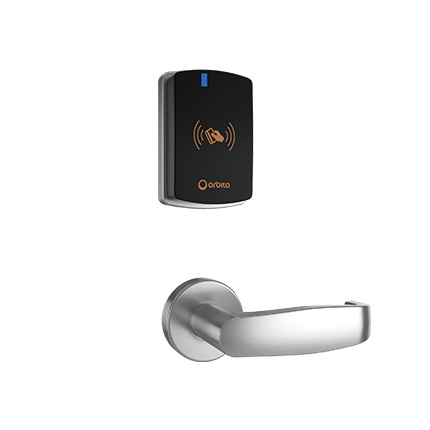

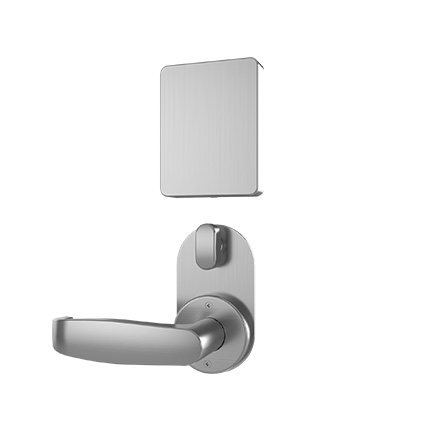

S3072H ORBITA Hotel Lock

ORBITA S3072H Hotel Lock is made of grade 304 stainless steel with a PMMA card reader cover, with strong resistance to impact, corrosion and abrasion.

S3072H Door Lock can support other types of hotel management software, Fidelio/Opera, and Orbita wireless portable programmer for door lock setting, data collection and download functions. Certified by European CE and U.S. UL-10C, our products adopt the American standard 5-point tongue lock body with an anti-shim plunger design and an abnormal latch bolt alert for double security, stability and reliability. Functions such as door left open warning, low battery voltage warning, channel function and all-in-one function are available.

• Solid deadbolt
• Renovated clutch inside lock panels
• Standard 1680 events,optional 3360events

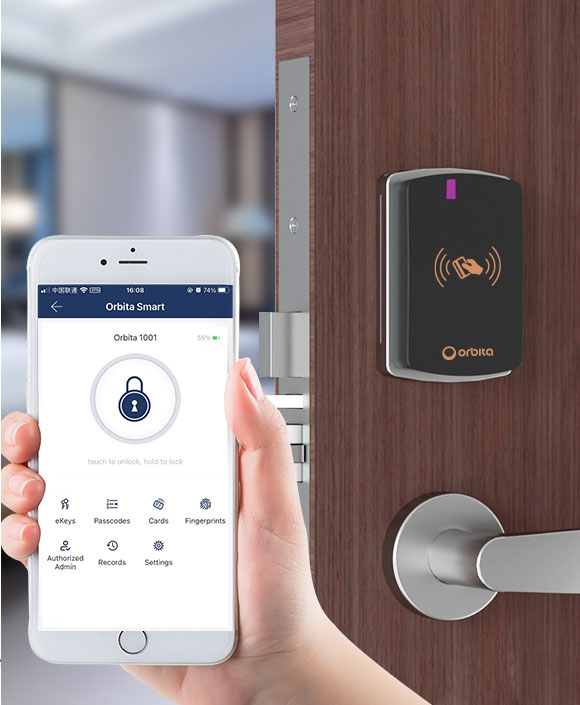

• Optinal Bluetooth & Wireless Online solution
• Interface with Opera or FIAS format PMS
• Passed the 180-minute fire test

Technical Details

Door Thickness: 11/8″ (35mm) to 2（3/4 ）” (72mm) for standard product

• Operating Power: Quiescent current: <30 μA;
• dynamic current: < 200 mA
• Battery Life: last over one year
• Working Temperature: -20 ℃– 60℃;
• Relative Humidity: 20% – 90%
